LAM Series
IG Operating Light LAMseries (New)
Innovative lighting technology combined with more functionality and comfort saves surgical time and enables high-performing surgeries.
View product
LAM Series900-16
IG Operating Light LAM Series
The LAM Series is characterized by a Compact design for easy operation & cleaning and can save more space through its streamlined and ultrathin appearance design.
- Technology
- LED
- Color temp.
- A: 4500, B: 3500 4000 4500 5000 (optional)
- Luminance (Lux)
- 160.000
- Focusable light field size (mm)
- 150 - 300
01 / 07
Overview
The LAM Series is characterized by a Compact design for easy operation & cleaning and can save more space through its streamlined and ultrathin appearance design.
With 360° rotation and a light arm. LAM Series ensures the light to be moved easily and freely.
The Mobile model is characterized by a Heavy base with 4 swivel castors, 2 of them with brakes. Back up battery for 3 working hours.
Light head mounted on a spring-loaded articulating arm. Height ~ 1.6m with 40cm adjustment.
Key features
- Compact design (Big Dome) with shadowless lighting
- Streamline slim dome profile optimizes laminar flow
- The LAM I MIS endoscopic light in white or green
- Adjustable illumination color temperature
- Up to 160Klux
- Electric and manual focusing
- Low power consumption and advanced energy control
- More than 50,000h effective working life
- Optional: HD & 4K camera, TFT monitor, wall control panel
- Basic Configuration
- Low power consumption & heat emission
- User-friendly control concept
- Long working life, high reliability, lower costs
- Optimal cleaning and disinfection conditions
- Compact design for easy operation
- Lighting depth regulation
- Lightweight construction (aluminium housing)
- Endo mode for different MIS environments
- Excellent colour restoration
- OR adapted colour rendering
- Large, homogeneous surface illumination

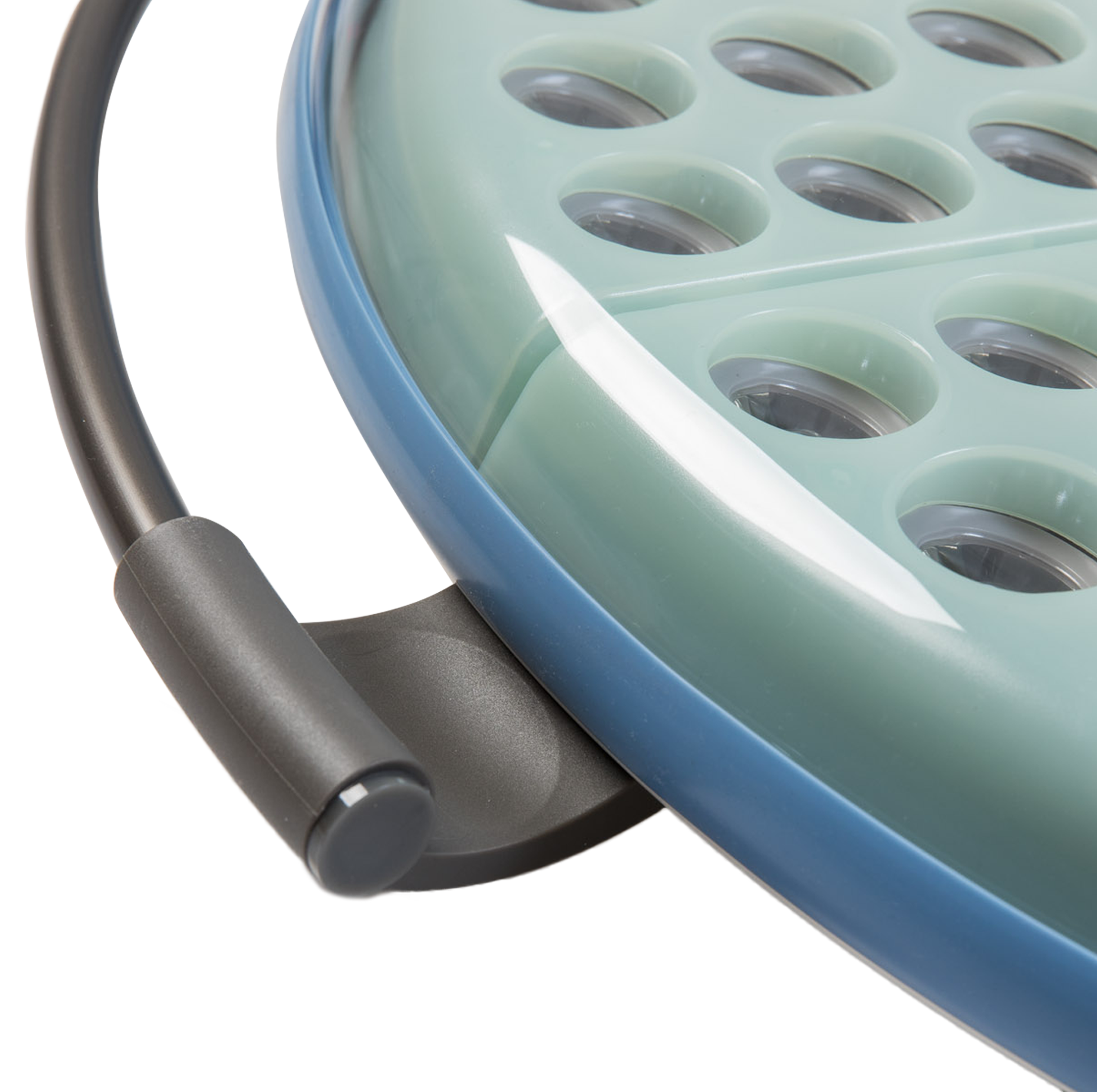

- Detachable handle of high-strength material
- Outstanding optical performance
- Optional with HD or 4K wireless camera
Technical specifications
As published by the manufacturer. Values marked “—” are not specified. Configurations vary by market; confirm with our team before ordering.
- Technology
- LED
- Color temp.
- A: 4500, B: 3500 4000 4500 5000 (optional)
- Luminance (Lux)
- 160.000
- Focusable light field size (mm)
- 150 - 300
- Diameter lamp housing (mm)
- 700
- MIS endoscopy lighting
- green or white light
- Depth of light (mm)
- > 1000
- Color of rendering index CRI (Ra)
- > 95
- Red color rendering index (R9)
- > 92
- Light head power comsumption
- < 80w
- Working life (hours)
- 60,000
