LAM SeriesIG LAMIII 900-16

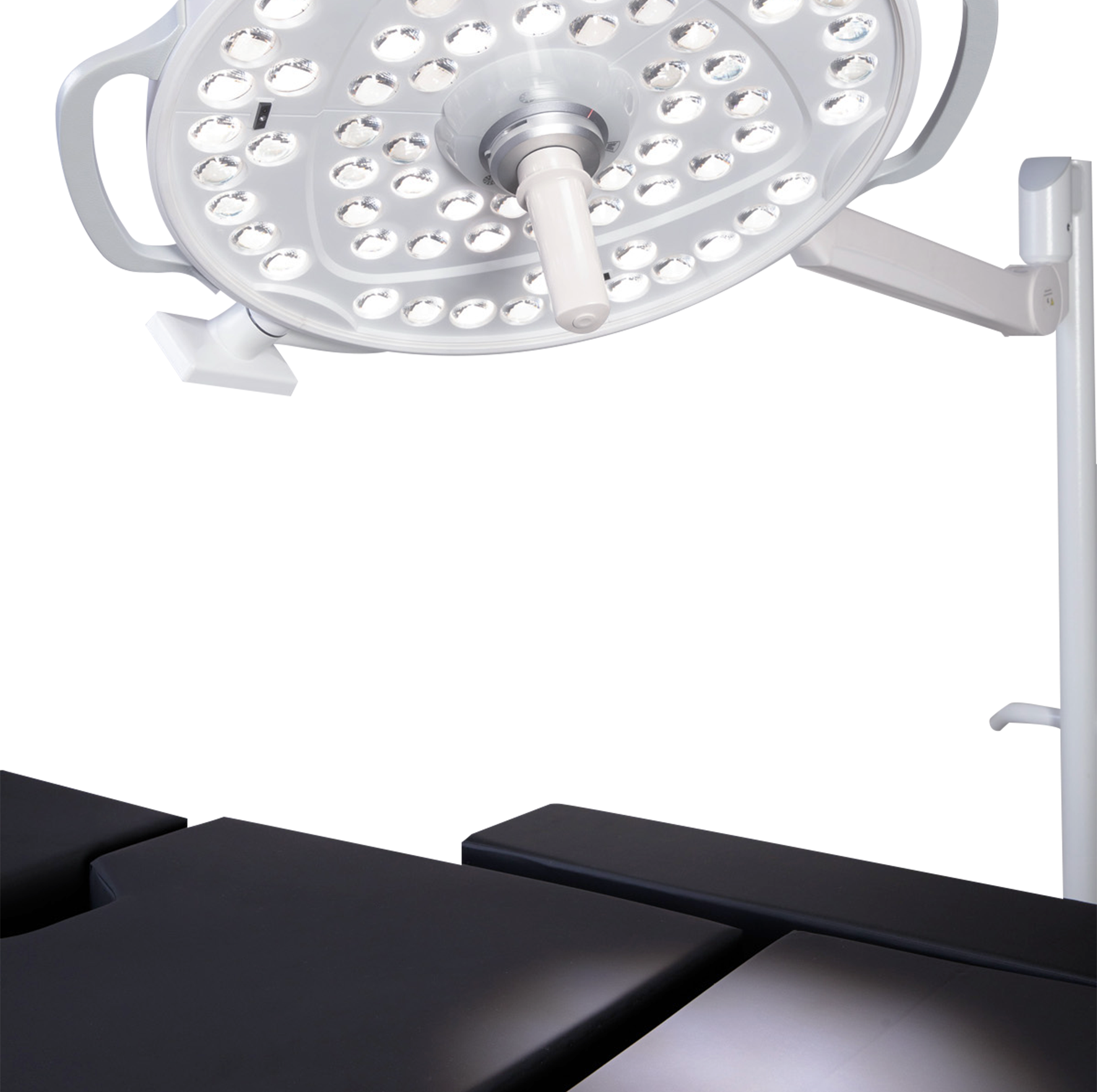

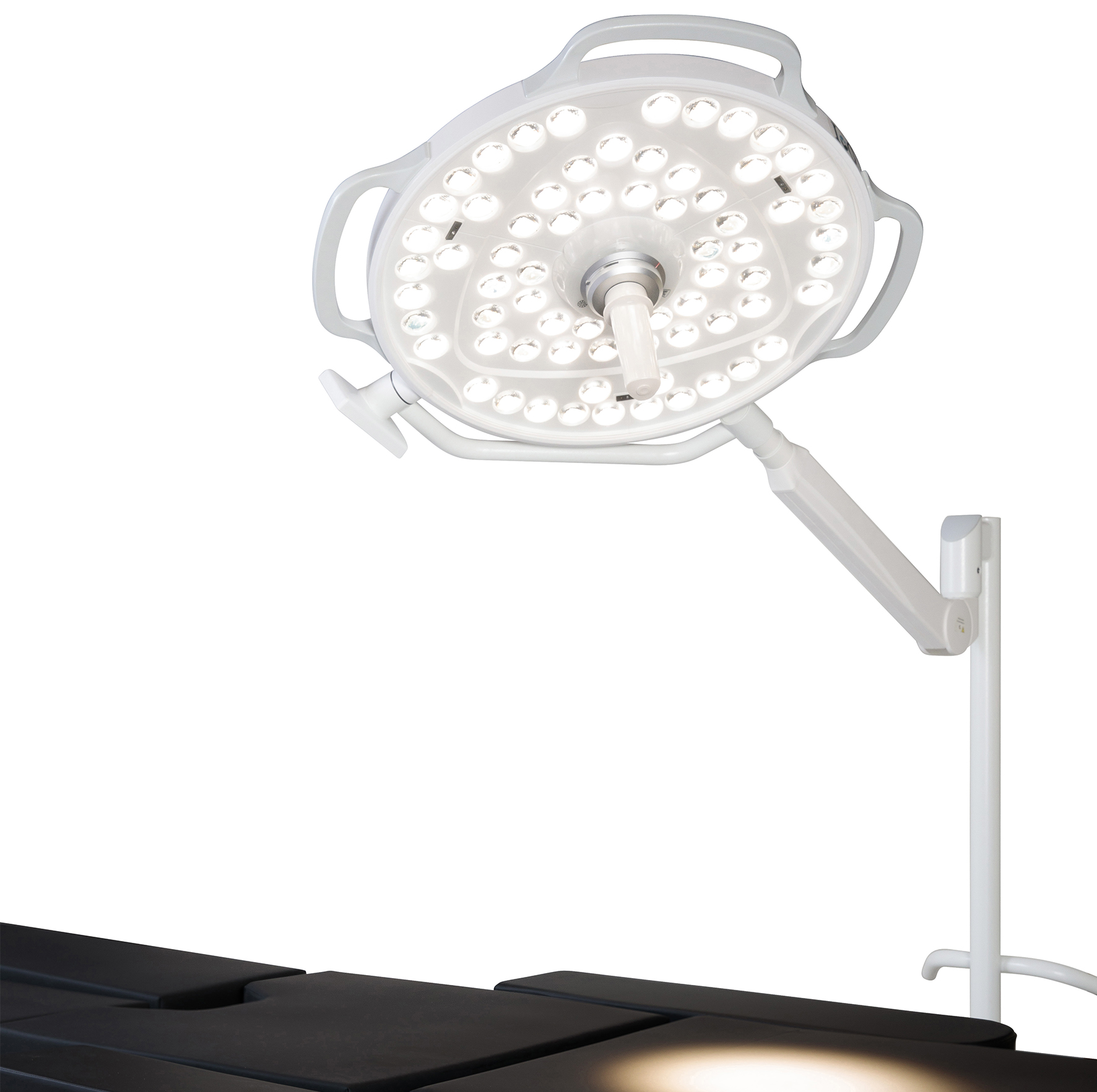

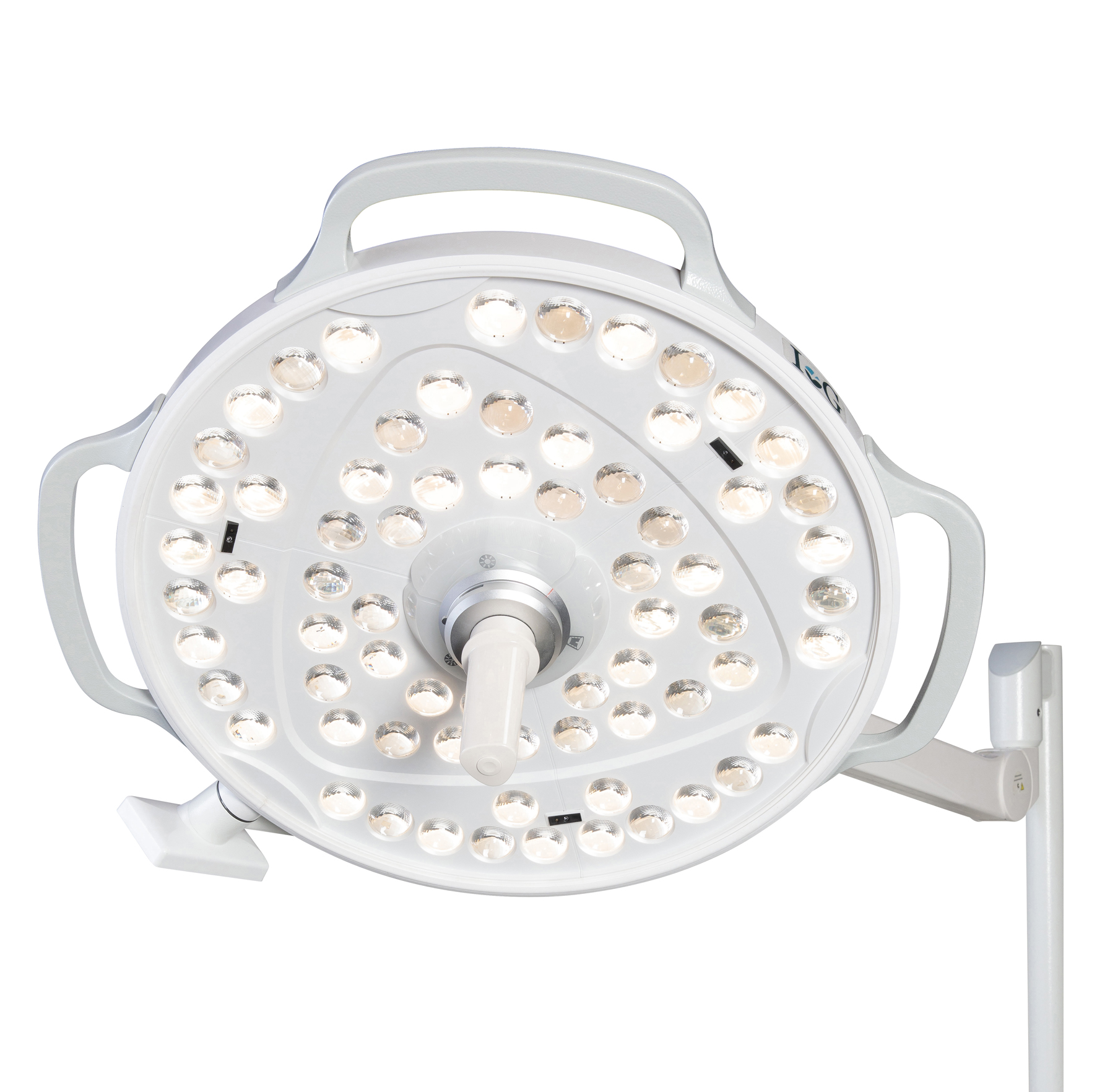

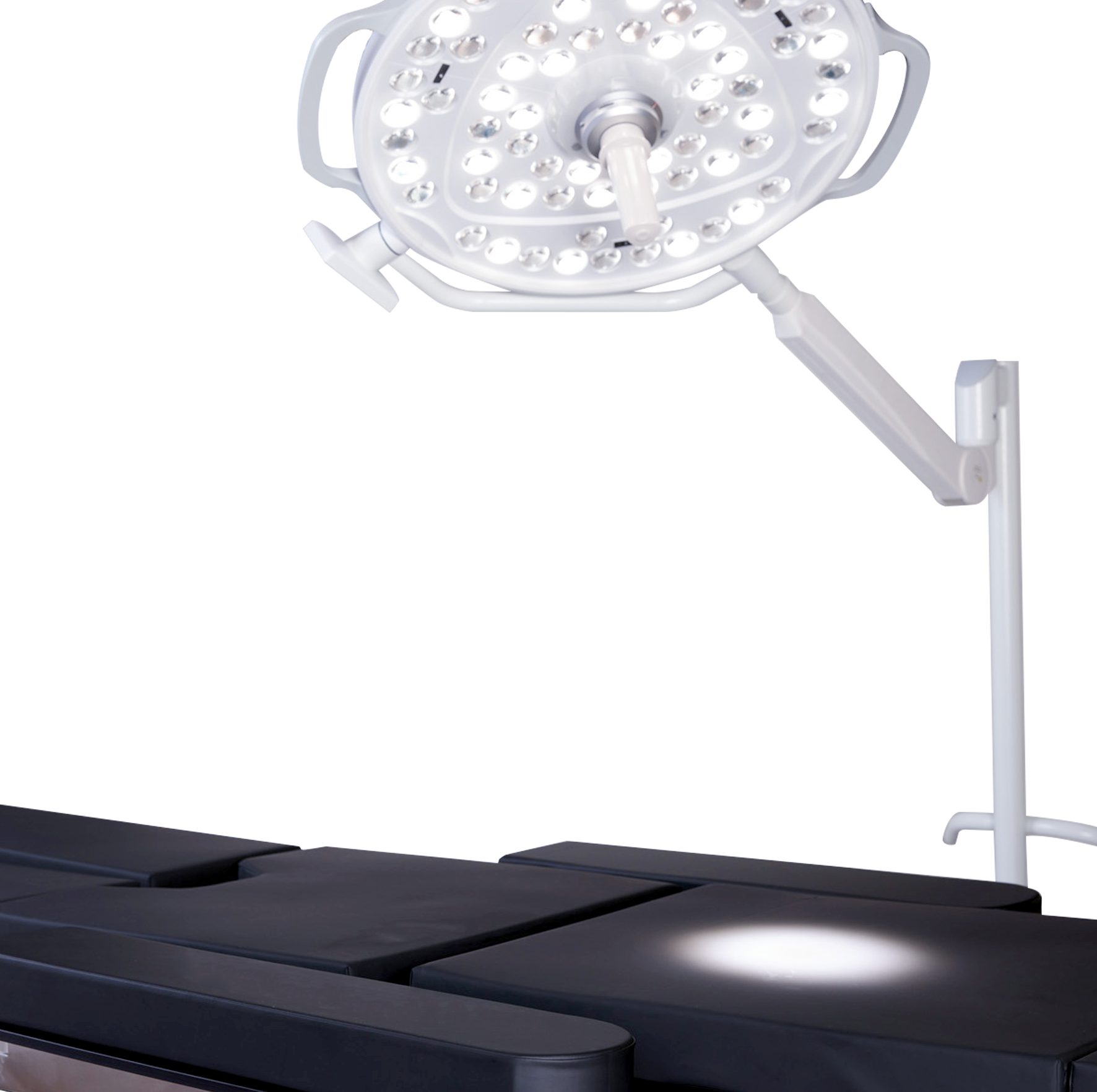

IG Operating Light LAMseries (New)

Innovative lighting technology combined with more functionality and comfort saves surgical time and enables high-performing surgeries.

Style: complete metalhead
Handle: Streamline metal handle
Thickness: Super-Slim, Only 6.5cm thickness
Theory: LED bulb, Color mixing in lens

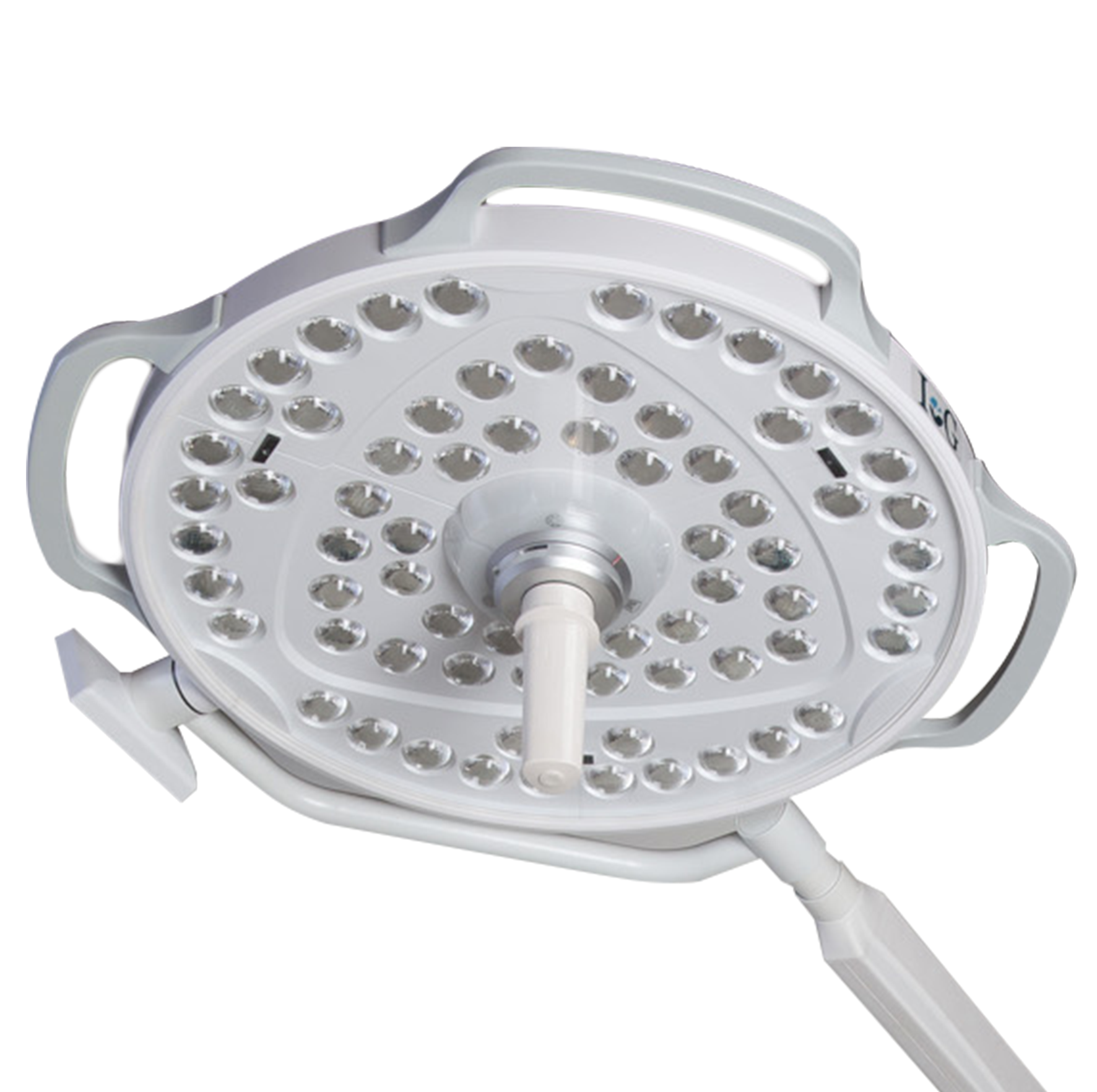

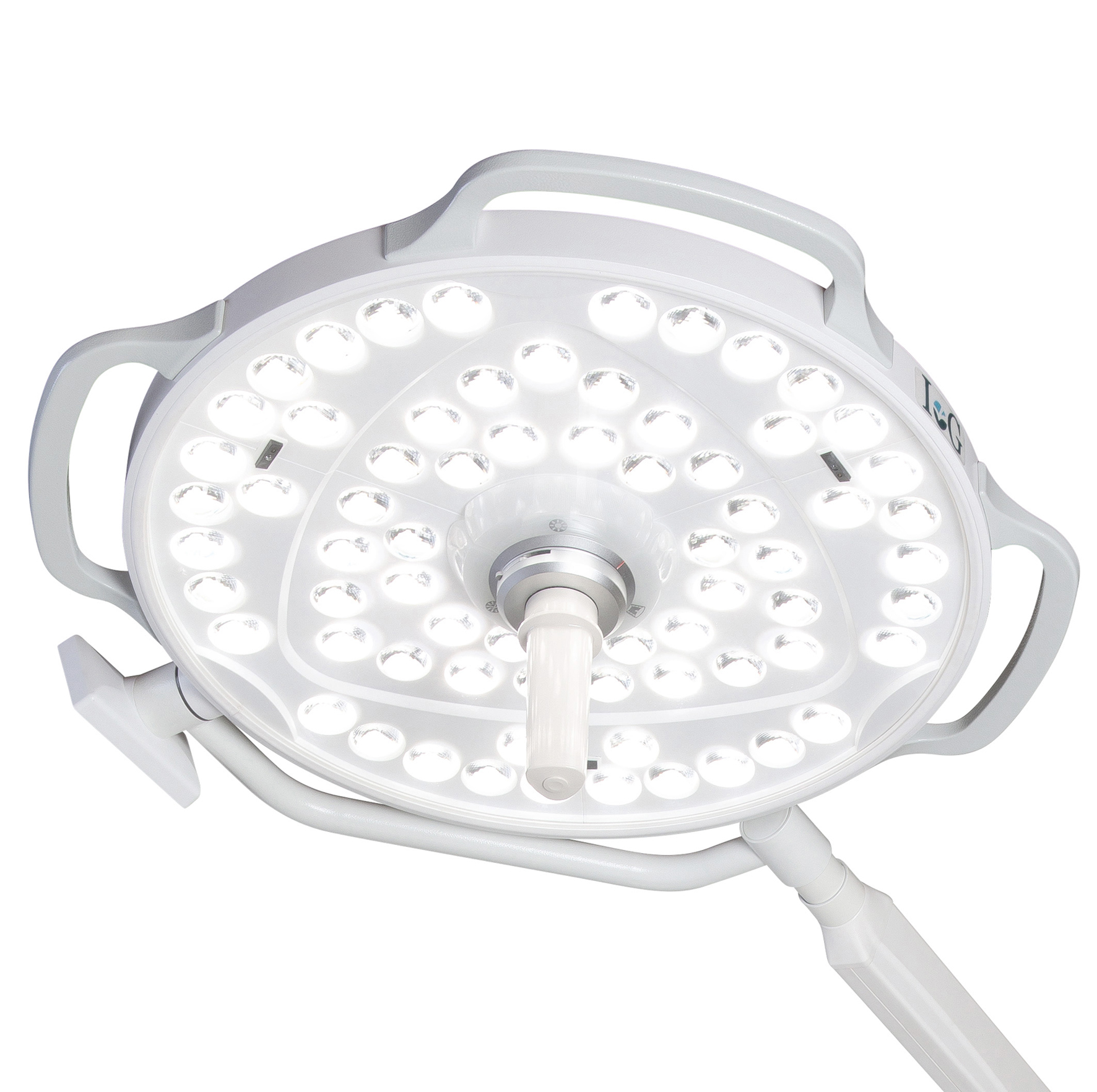

IG Operating Light LAMseries (New) — view 1

01 / 10

Overview

Innovative lighting technology combined with more functionality and comfort saves surgical time and enables high-performing surgeries.

IG Medical offers state-of-the-art surgical theatre lights and video systems with excellent illumination wherever they are used, providing an extremely powerful light engine, an intuitive control system and future upgradeability.

Key features

Powerful Optical System with QUAD LED technology — Advanced Optical System (AOS) designed by most innovative European engineers ensures best visibility and workplace comfort
Energy-Efficiency — Cold light head and lowest consumption
Greater independence — Sterilisable multi-functional and intuitively used handle saves important time
Upgrading made simple — technologies that are upgradeable without any interruptions
Basic Configuration
Latest LED QUAD technology for homogeneous warm/cold mixing behind lens
Extremely Flat Design for Best Hygiene

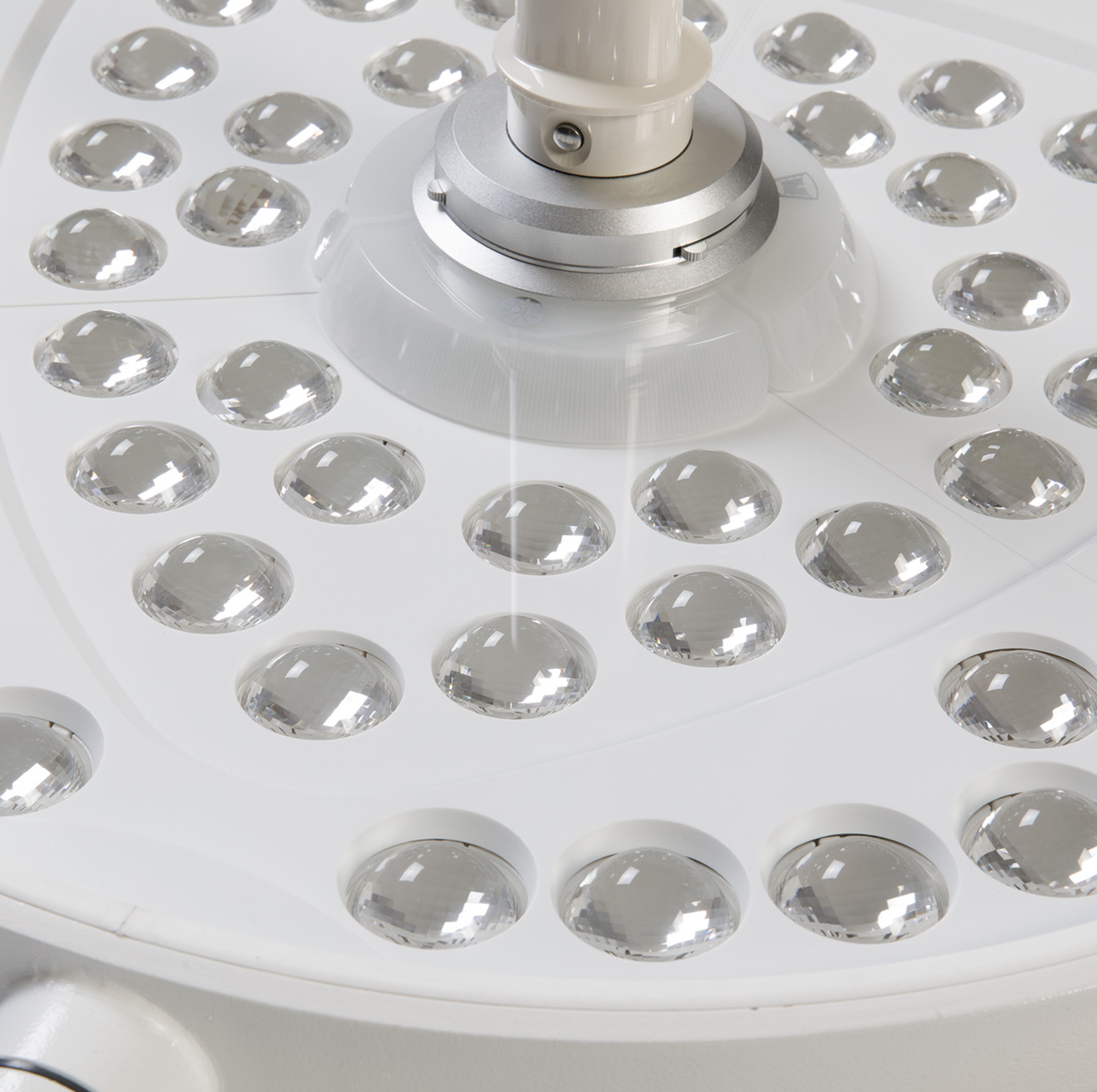

Multi-Facetted Lens System (MFLS) for homogeneous lighting distribution
Avoiding colour shadow
Electronic Focusing with Dual Lens System
Provide comfortable surgery environment
Low power consumption & heat emission
Long working life, high reliability, lower costs
Optimal cleaning and disinfection conditions
Lighting depth regulation
Lightweight construction (aluminium housing)

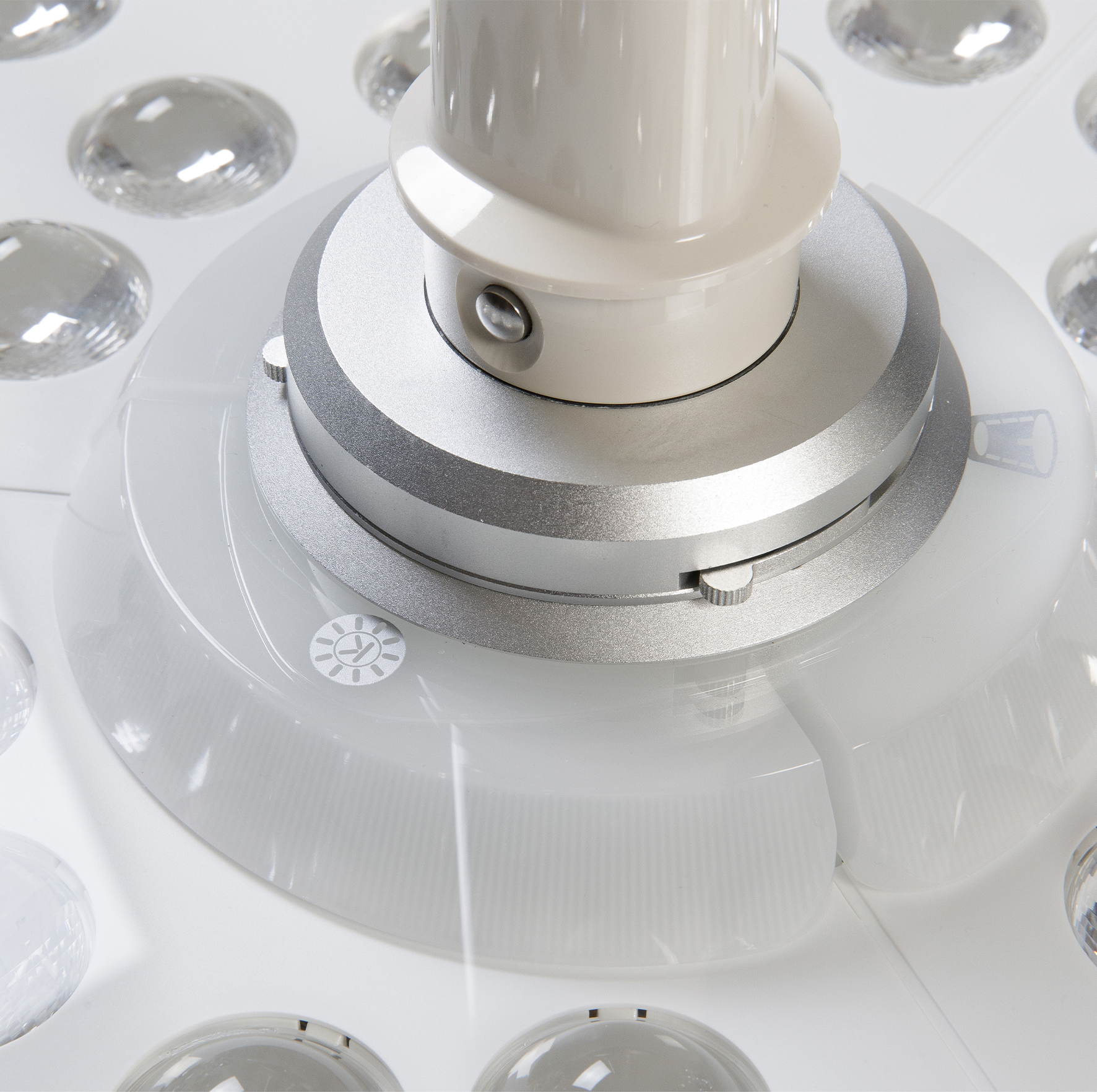

Controlling & sterile handle at multifunction handle
Endo mode for different MIS environments
Excellent colour restoration
OR adapted colour rendering
Large, homogeneous surface illumination

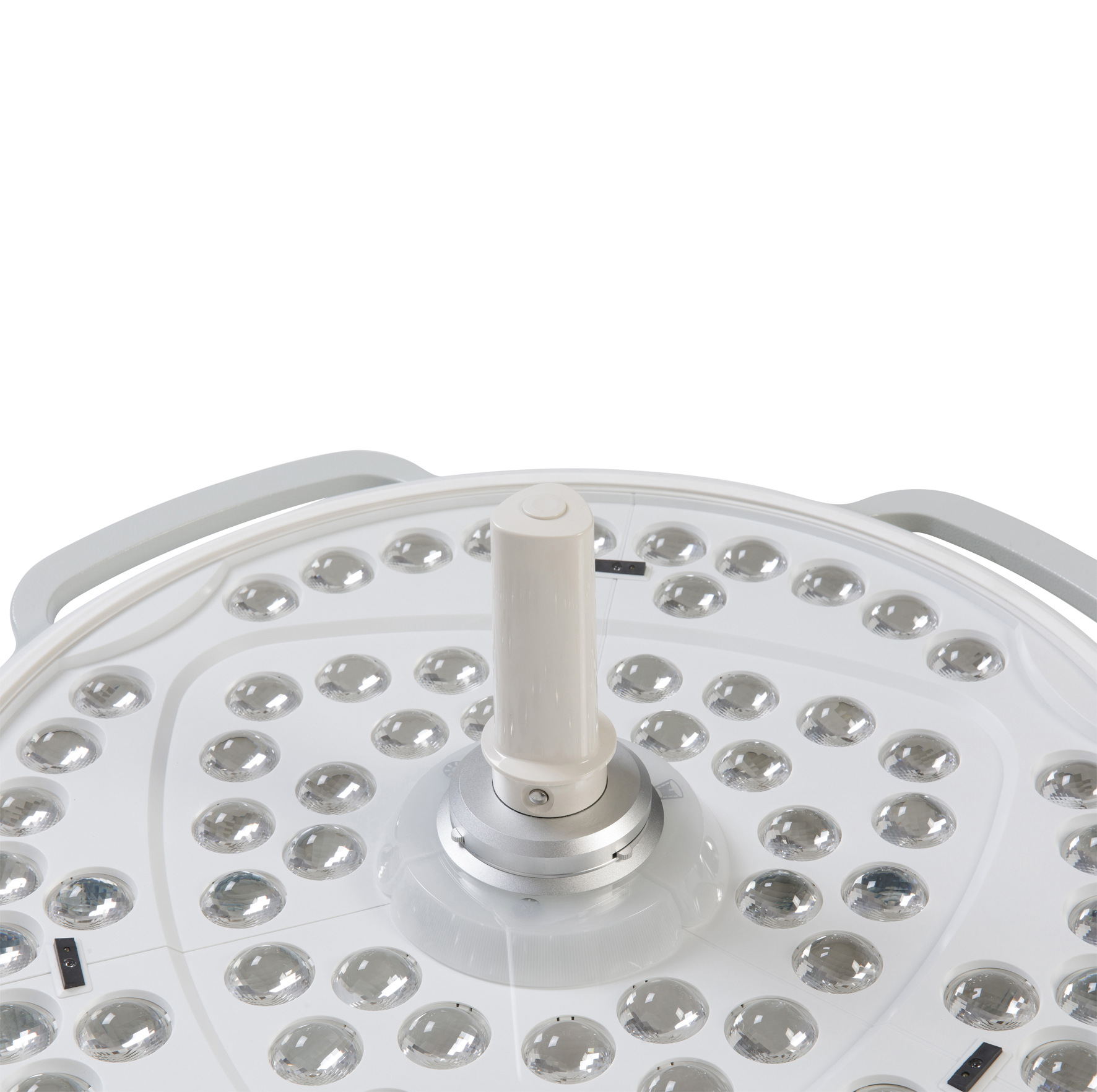

Detachable handle of high-strength material
Outstanding optical performance
Optional with HD or 4K wireless camera

Technical specifications

As published by the manufacturer. Values marked “—” are not specified. Configurations vary by market; confirm with our team before ordering.

Style: complete metalhead
Handle: Streamline metal handle
Thickness: Super-Slim, Only 6.5cm thickness
Theory: LED bulb, Color mixing in lens
Luminance: 40KLUX~160KLUX, 10 steps
Color Temp: 3500K/3900K/4300K/4700K/5100K
Depth of illuminance: ≥1400mm(20%), ≥710mm(60%)
Dia. Of light spot: 180mm-300mm Electrical adjust
Ra: 96
R9: 95
Distribution of: 70%
Shadowless: Intelligent shadow management (Optional)
LED working life: 60000h
Handle controller: Control illuminance, color temp and focus
Detachable Camera: Camera can be interchangeable with handle

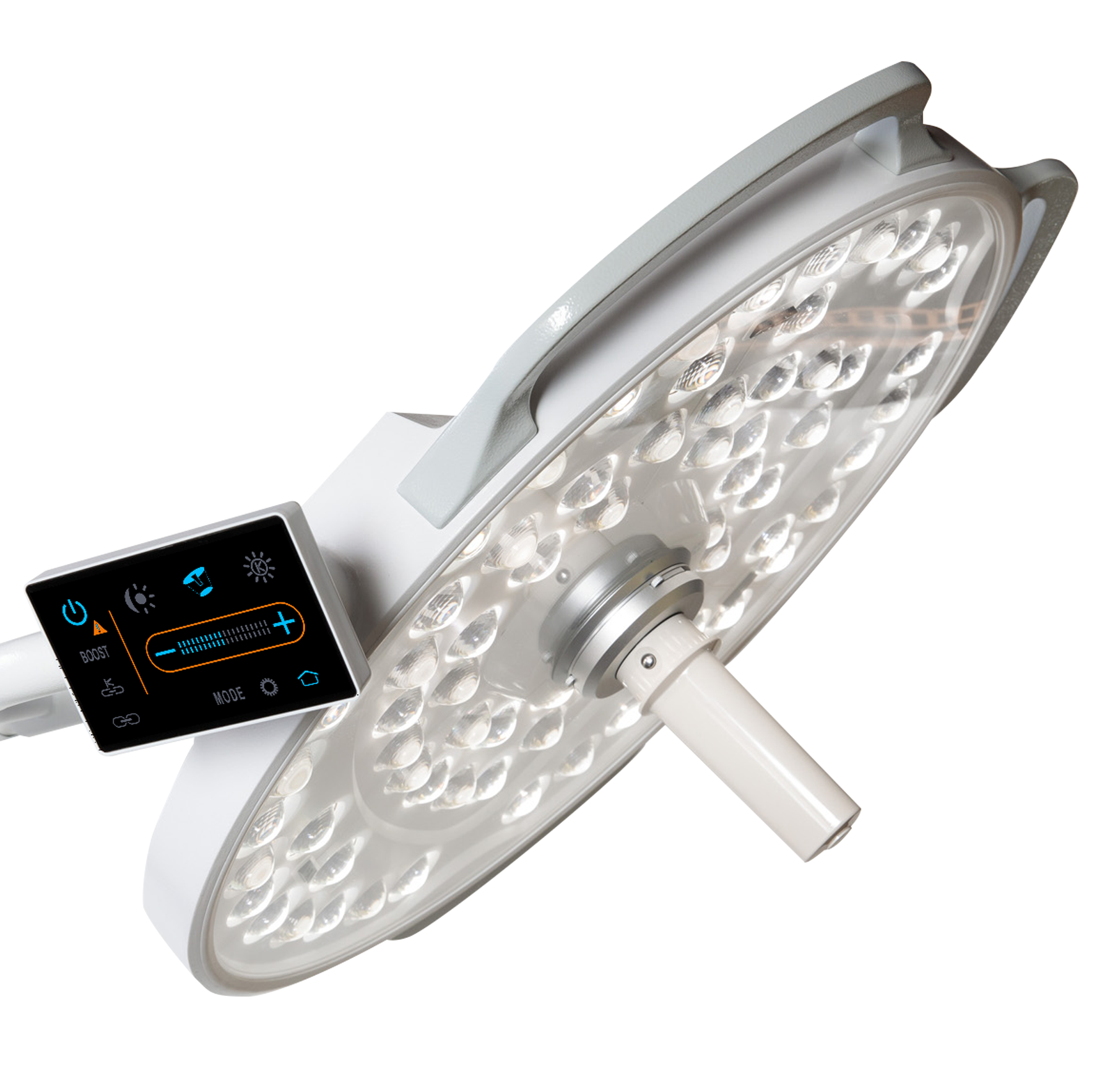

Controlling mode: 1. Handle controller 2. Touch screen controller 3. Wireless controller
Endo-mode: 4000~8000lx, five steps
Boost Mode: Increase illuminance temporarily
Window Glass: Enhanced Plexiglass
Light head: Complete Aluminum, durable and good
