TAB Series

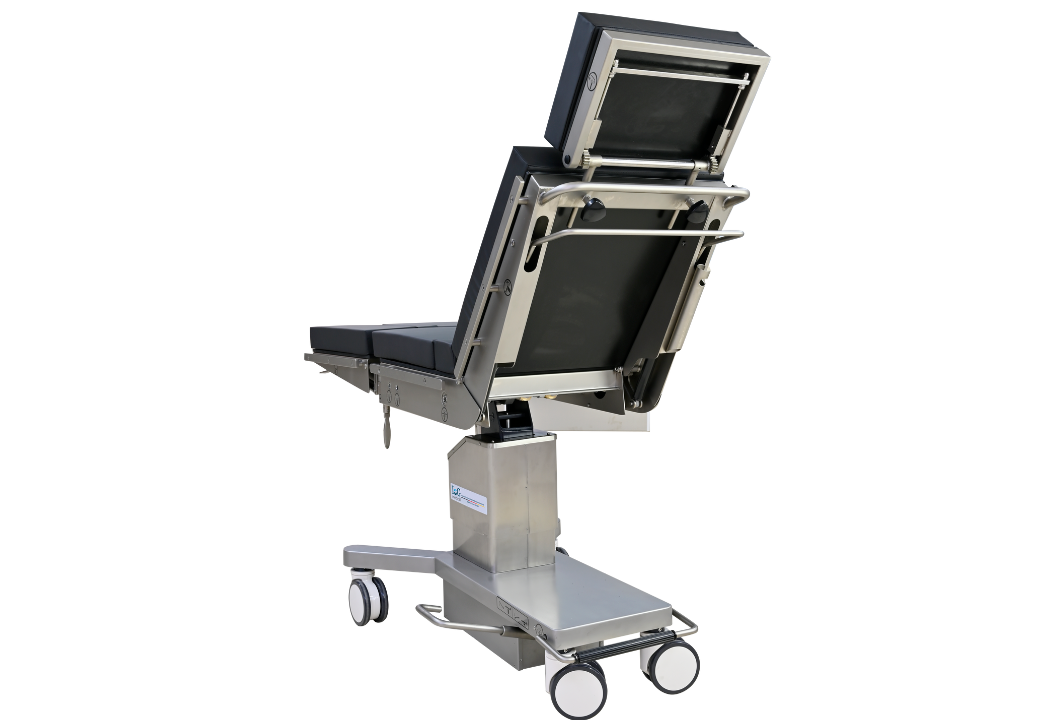

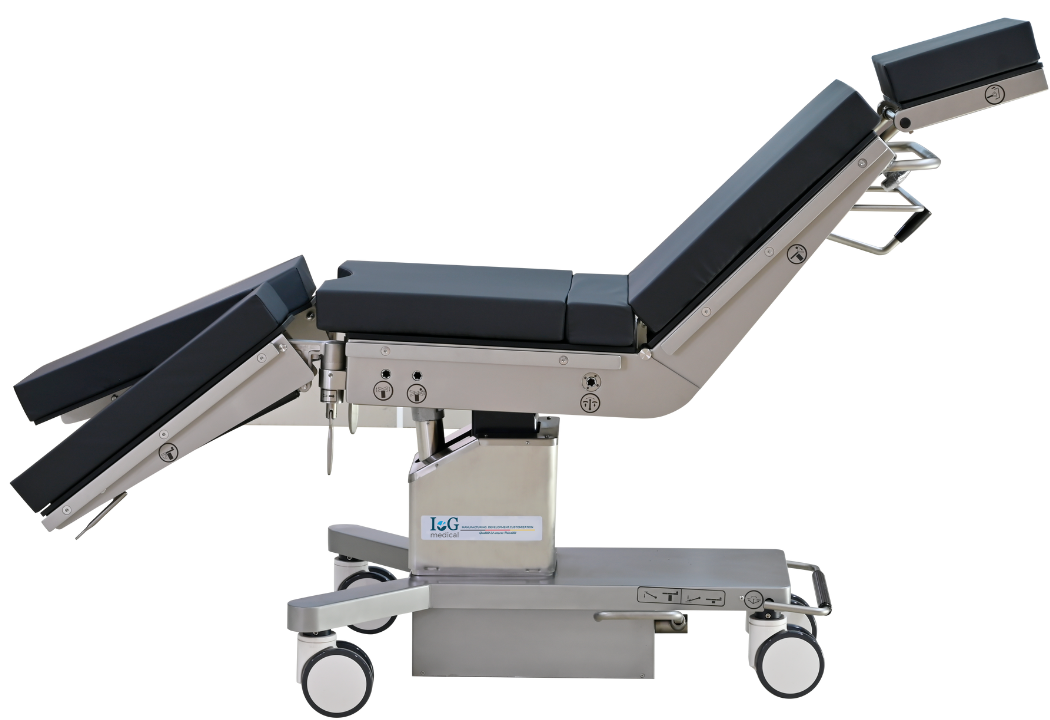

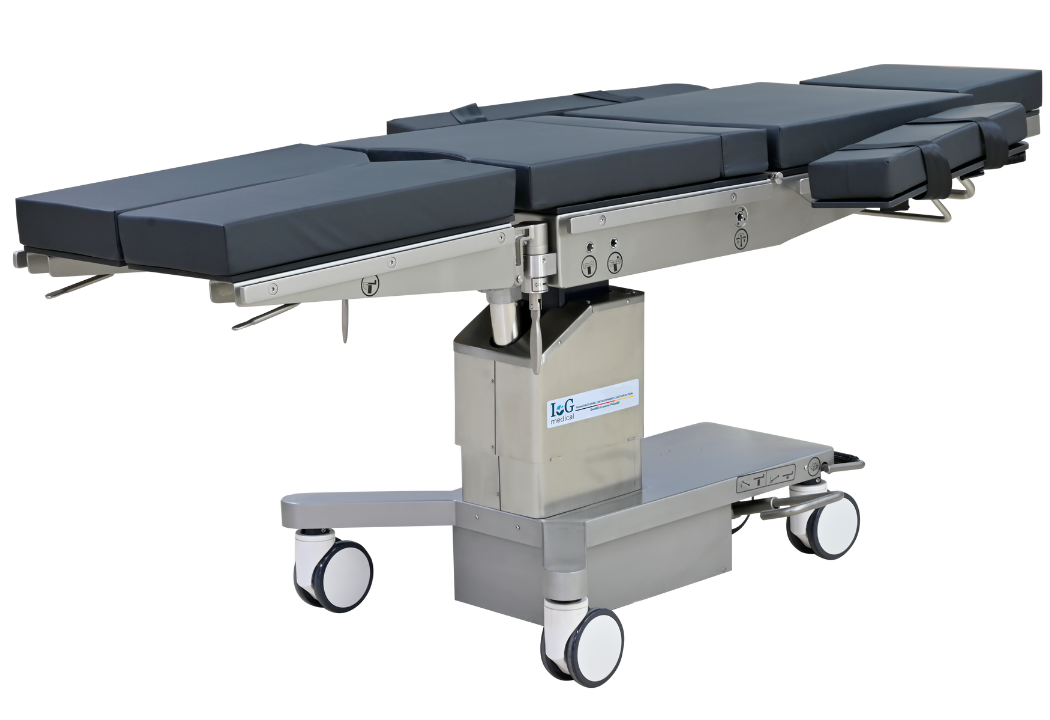

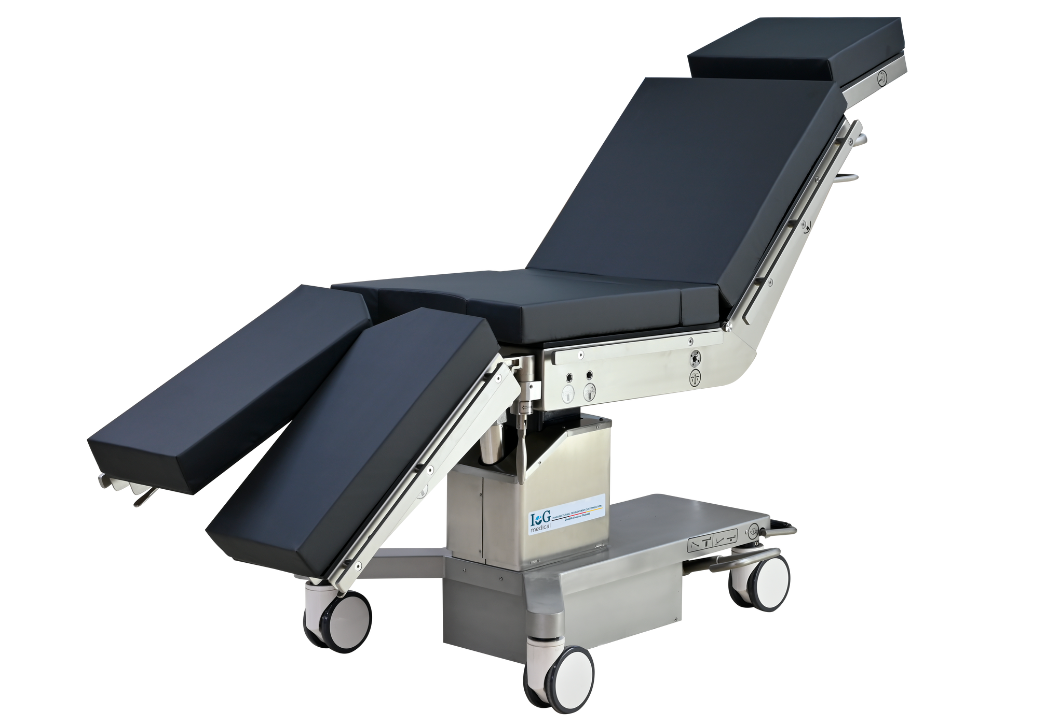

IG Operating Table TAB-225
Our manual surgical tables are economic models which minimize essential maintenance and cost efforts.
- Table Top
- ≥2040x510mm
- Back Board
- ≥570x510mm - ≥570x510mm
- Leg Board
- ≥630x245mm
- Table Height
- 680mm±20mm
01 / 04
Overview
Our manual surgical tables are economic models which minimize essential maintenance and cost efforts. Nevertheless, they offer reasonable structures and strong functions to fulfill medical staff requirements.
Key features
- Enables a wide range of configurations for general and special surgery
- Accommodates larger patients, and offers excellent access to the operated site thanks to its design and adjustment options
- Heavy-duty casters with low noise and high mobility
- Reliable hydraulic systems for a steady and swift lifting up/down
- Dual-layer slow-elastic memory foam pad
- More comfort and balanced stress
- Orthopedic tractor and skull clamp is optional
- Table board is radiolucent with the X-ray film cassette
- Basic Configuration
- High-quality stainless steel body: compact and durable
- Integrated kidney elevator
- Slow-elastic memory foam: reduces stress and increases comfort for the patient
Technical specifications
As published by the manufacturer. Values marked “—” are not specified. Configurations vary by market; confirm with our team before ordering.
- Table Top
- ≥2040x510mm
- Back Board
- ≥570x510mm - ≥570x510mm
- Leg Board
- ≥630x245mm
- Table Height
- 680mm±20mm
- Height Adjustment Range
- △H≥250mm
- Trendelenburg und Rev.Trendelenburg
- ≥25°
- Lateral Tilt
- 20°±2°
- Head Rest
- Up≥50° Down≥75°
- Leg Board (Separating Angle)
- Down≥90° Up≥10° Out≥90°
- Kidney Elevator
- ≥110mm
- load capacity
- up to 200Kg
