TAB Series

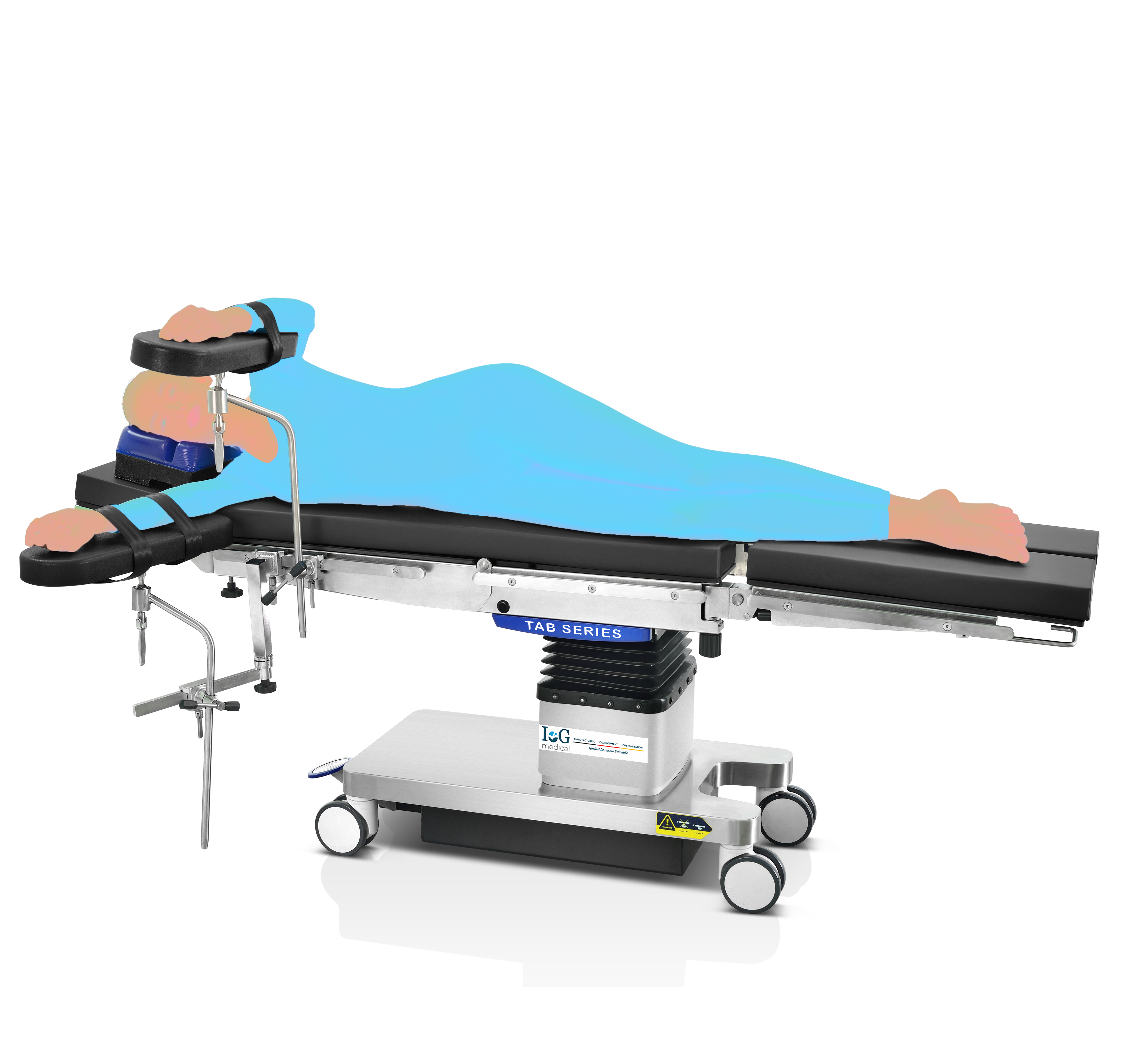

IG Operating Table TAB-250
Our electro-motorized surgical tables offer optimal performance, low maintenance costs, excellent structures, and strong usability functions.
- Length
- 2050mm
- Table top width
- 520mm
- Minimum height
- 650mm
- Lifting
- 350mm
01 / 10
Overview
Our electro-motorized surgical tables offer optimal performance, low maintenance costs, excellent structures, and strong usability functions.
Key features

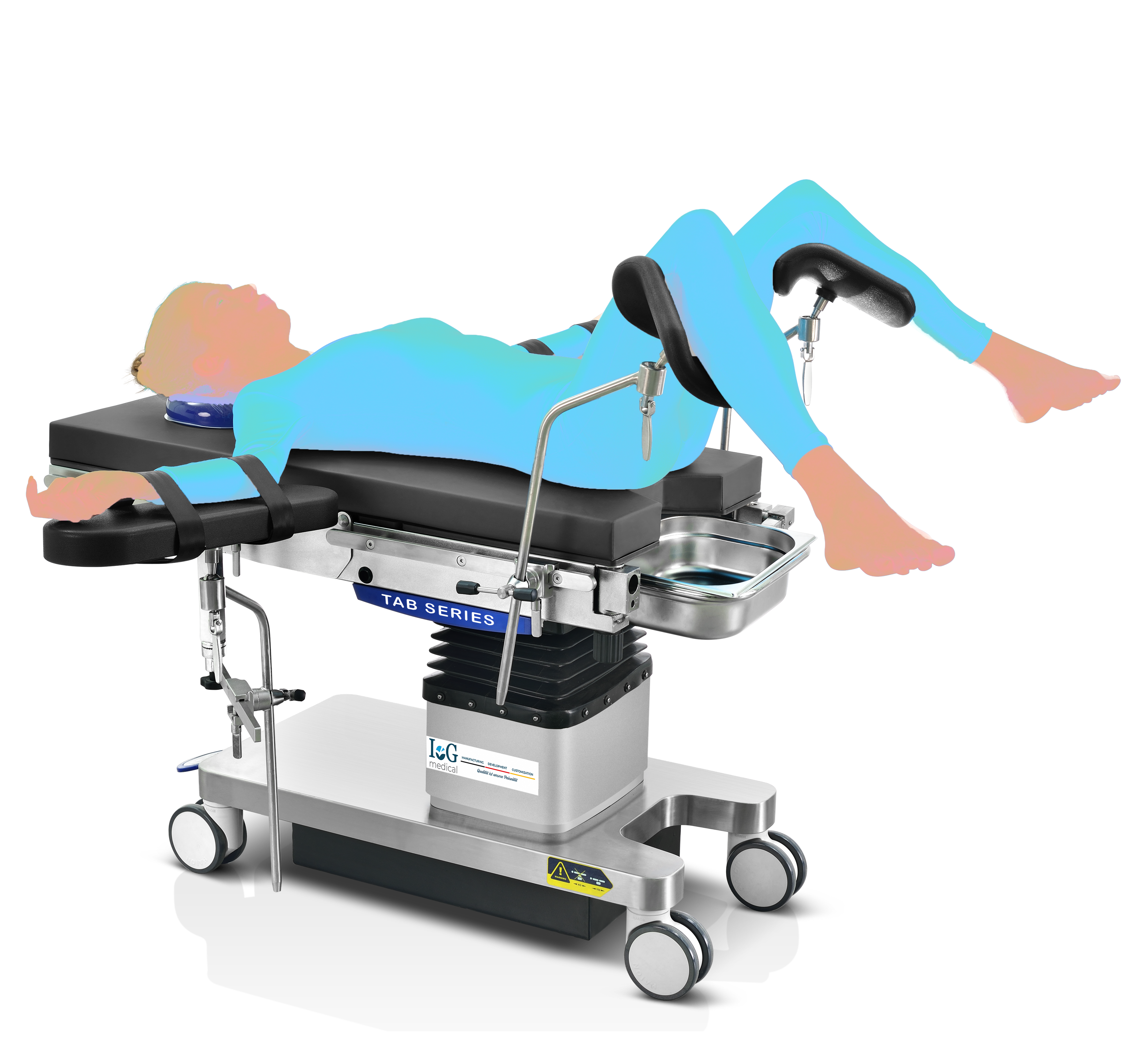

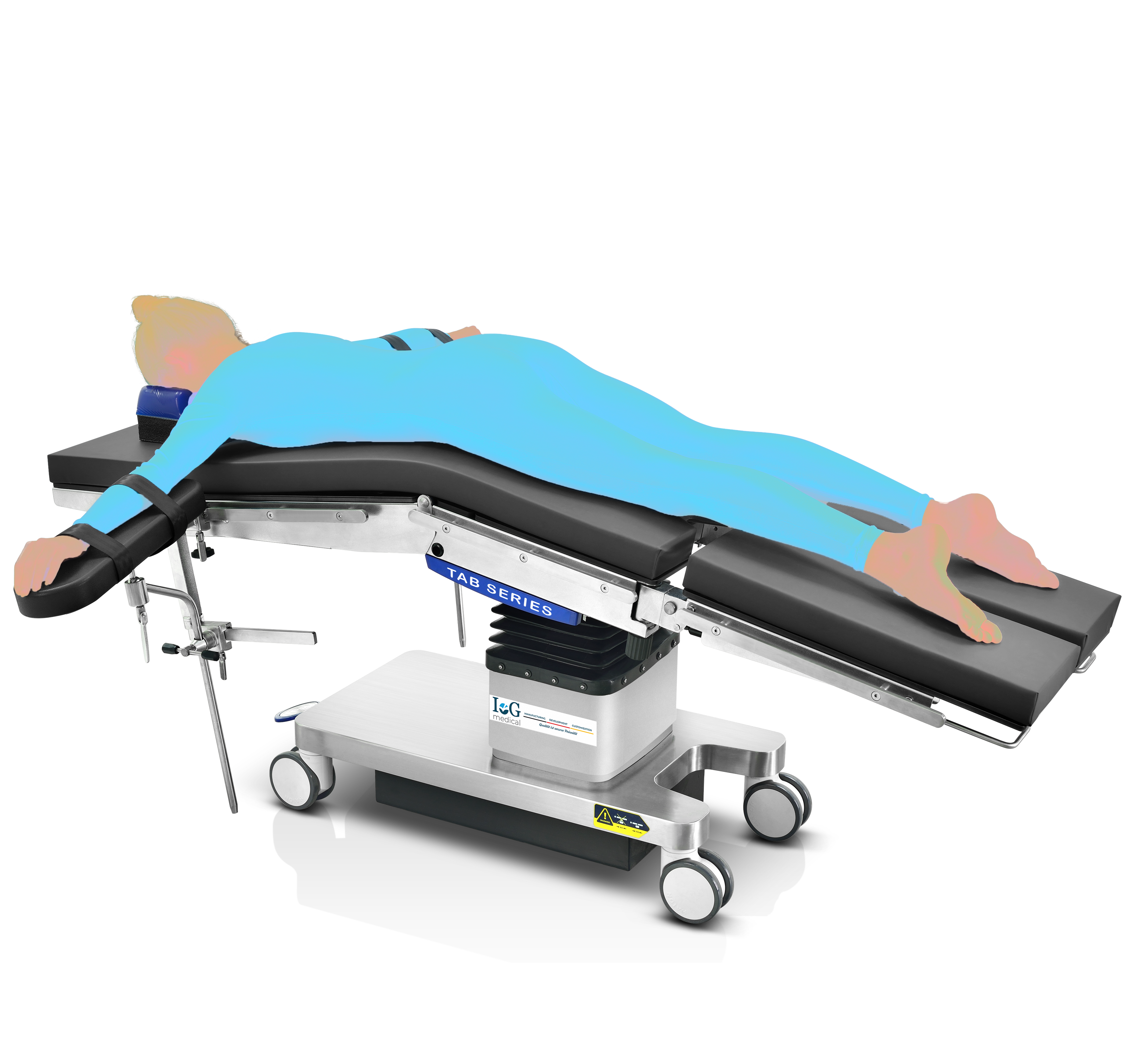

- Enables a wide range of configurations for general and special surgery
- Accommodates larger patients, and offers excellent access to the operated site thanks to its design and adjustment options
- Heavy-duty casters with low noise and high mobility
- Reliable hydraulic systems for a steady and swift lifting up/down
- Dual-layer slow-elastic memory foam pad
- More comfort and balanced stress
- Orthopedic tractor and skull clamp is optional
- Table board is radiolucent with the X-ray film cassette
- Basic Configuration
- High-quality stainless steel body
- Stable hydraulic system
- Efficient and ergonomic
- Fast connections

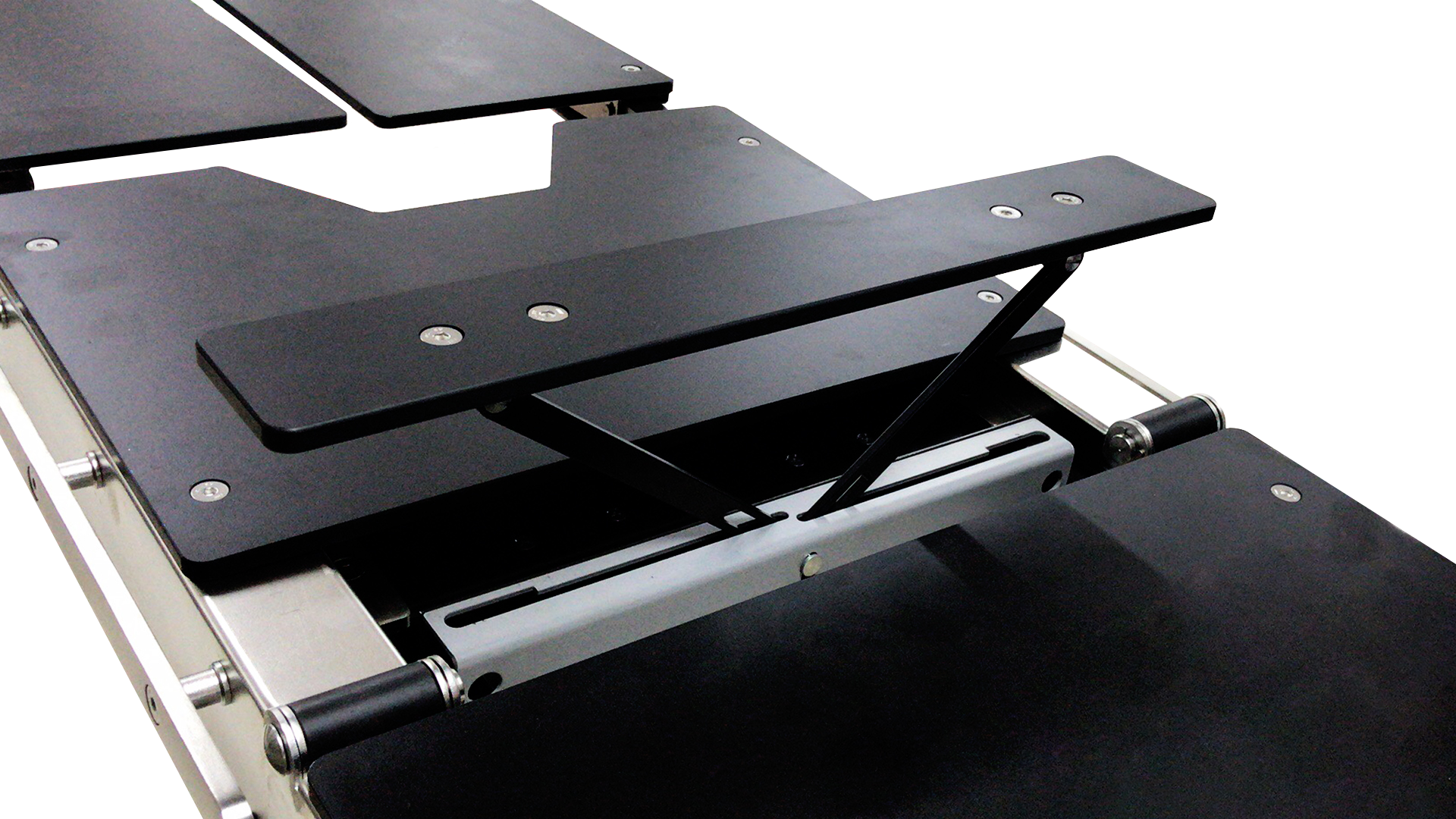

- Integrated kidney elevator
- Intelligent battery management system
- Tabletop slide (Optional)
Technical specifications
As published by the manufacturer. Values marked “—” are not specified. Configurations vary by market; confirm with our team before ordering.
- Length
- 2050mm
- Table top width
- 520mm
- Minimum height
- 650mm
- Lifting
- 350mm
- Trendelenburg/Revers
- 30°
- Tilt (left / right)
- 20° / 20°
- Head plate(up/down)
- Up 70° / Down 90°

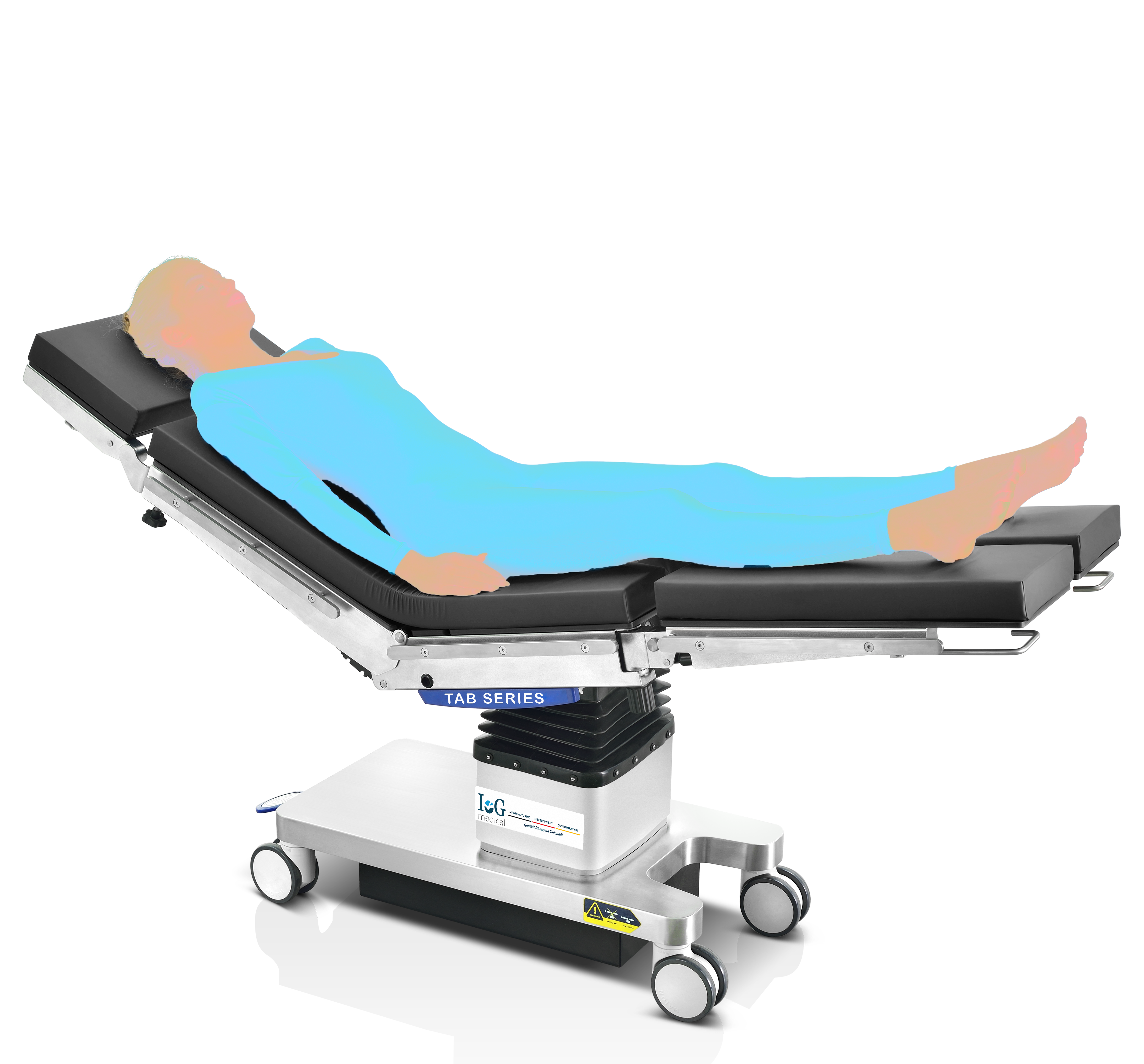

- Back plate(up/down)
- Up 80° / Down 40°

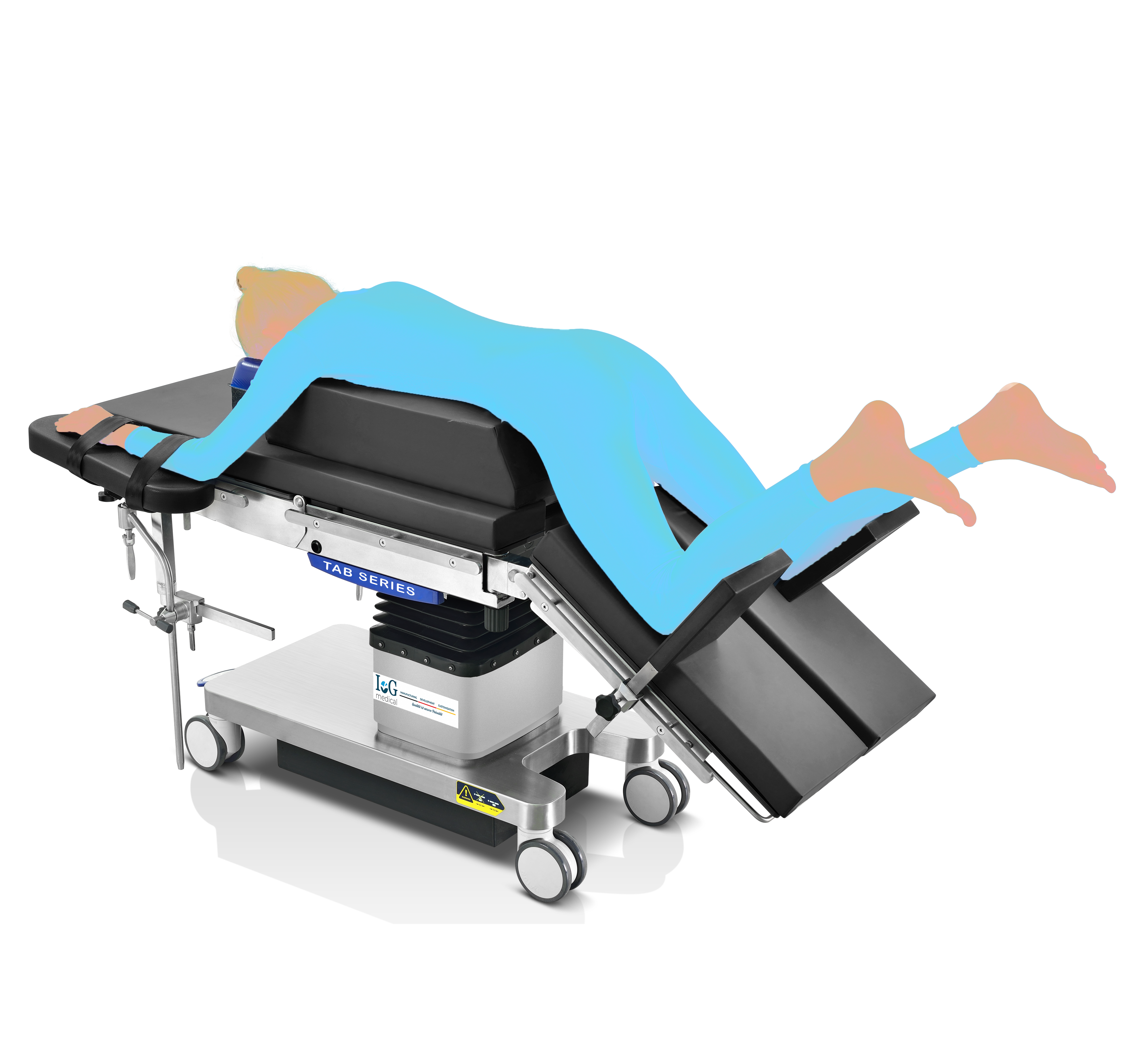

- Leg plate(up/down/outwards)
- 35° / 90° / 180°
- Kidney bridge(up)
- 130mm
- Longitudinal slide
- 350mm
- Load Capacity
- 250kgs
