TAB Series
IG Operating Table TAB-300
The electrohydraulic TAB Series surgical table provides great performance due to its electric hydraulic system, strong lifting force, excellent stability, and C-arm compatible features.
View product
TAB Series
IG Operating Table TAB-400
The electrohydraulic TAB Series surgical table provides great performance due to its electric hydraulic system, strong lifting force, excellent stability, and C-arm compatible features.
- Table top length
- 2050mm
- Lowest height of top
- 600mm /490mm
- Lifting range of top
- 420mm / 500mm
- Trendelenburg
- 32°
01 / 04
Overview

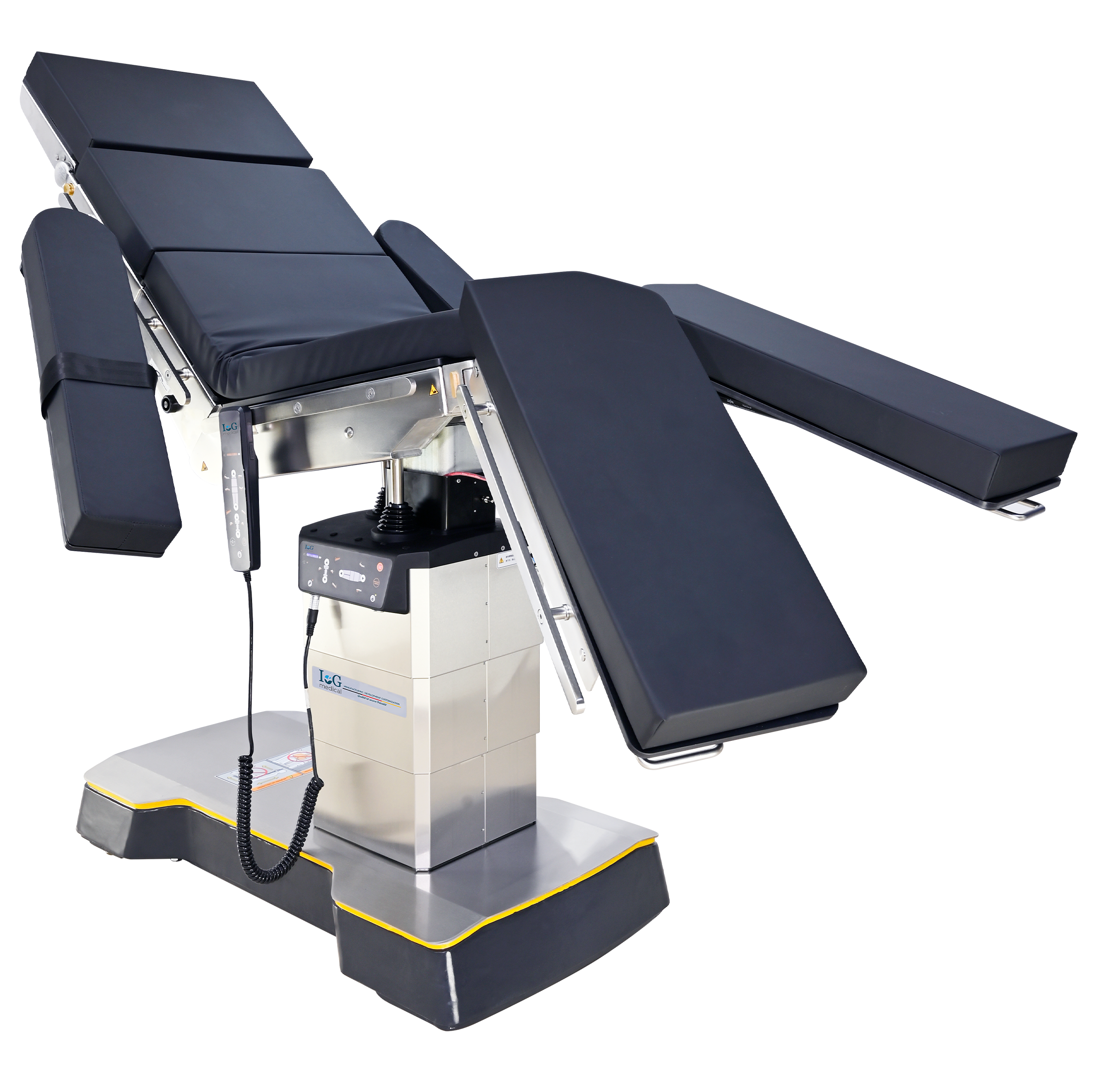

The electrohydraulic TAB Series surgical table provides great performance due to its electric hydraulic system, strong lifting force, excellent stability, and C-arm compatible features. With its modular tabletop and comprehensive range of accessories, the electro-hydraulic table can be configured for each surgical procedure and for all patient sizes in the best possible way.
It provides open access to the operated area and creates excellent working economics for the surgical team without compromising on patient safety. All electro-hydraulic adjustments are controlled via user-friendly hand controls, either wireless or wired, or foot control units
Key features
- Stable hydraulic system
- Loading capacity up to 400kg
- Two independent controlling systems

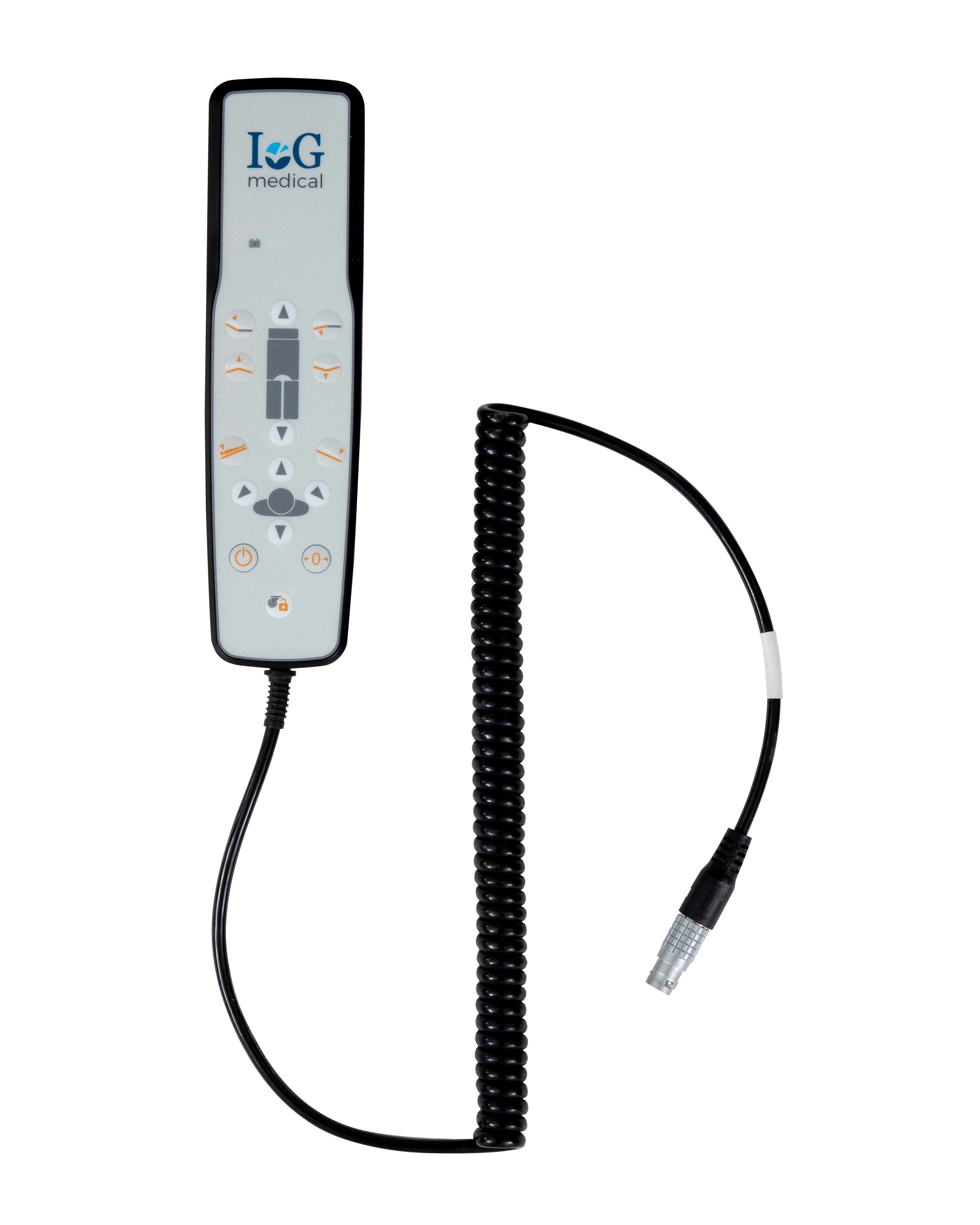

- Handheld controller
- Wireless controller
- Emergency panel
- Fast connections
- Efficient and ergonomic
- Basic Configuration
- Tabletop up to 6 sections
- High-quality stainless steel body
- Multi-layer foam: Waterproof, antibacterial, and antistatic
- Intelligent battery management system
- Integrated kidney elevator: Up to 120mm
- Ultra-low setting table system: For comfort operating
- Wide range of accessories: Including carbon fiber plate option
Technical specifications
As published by the manufacturer. Values marked “—” are not specified. Configurations vary by market; confirm with our team before ordering.
- Table top length
- 2050mm
- Table top width
- Not specified by the manufacturer
- Lowest height of top
- 600mm /490mm
- Lifting range of top
- 420mm / 500mm
- Trendelenburg
- 32°
- R. Trendelenburg
- 32°
- Tilt (left / right)
- 22° / 22°
- Flex / Reflex
- 95° / 225°
- Head plate up
- 46°
- Head plate down
- 90°
- Leg plate(up/down/outwards)
- Not specified by the manufacturer
- Back Board (up/down)
- 80°/40°
- Load Capacity
- Not specified by the manufacturer
- Kidney elevator
- 120mm
- Sliding
- 360mm
Product video
Downloads
Related products
TAB Series
IG Operating Table TAB-500
The electrohydraulic TAB Series surgical table provides great performance due to its electric hydraulic system, strong lifting force, excellent stability, and C-arm compatible features.
View product
TAB Series
IG Operating Table TAB-400m
The TAB-400m electric hydraulic operating table, an advanced electric operating table with a carbon fiber tabletop, meets different surgeries requirements.
View product
Interested in the Operating Table TAB-400?
Send us your requirements and our team will confirm the configuration, accessories and lead time for your market.
IG Medical GmbH · Schongauerstr. 5, 28219 Bremen, Germany
